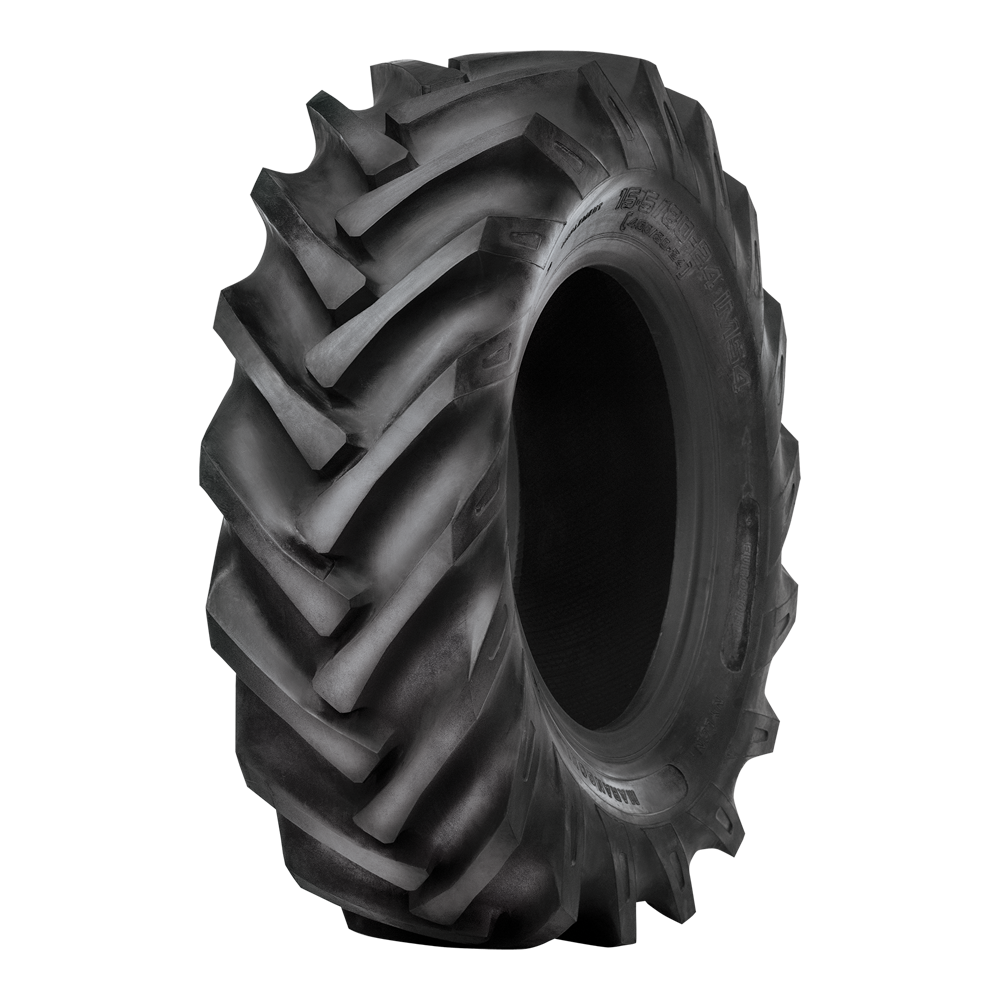

IM54

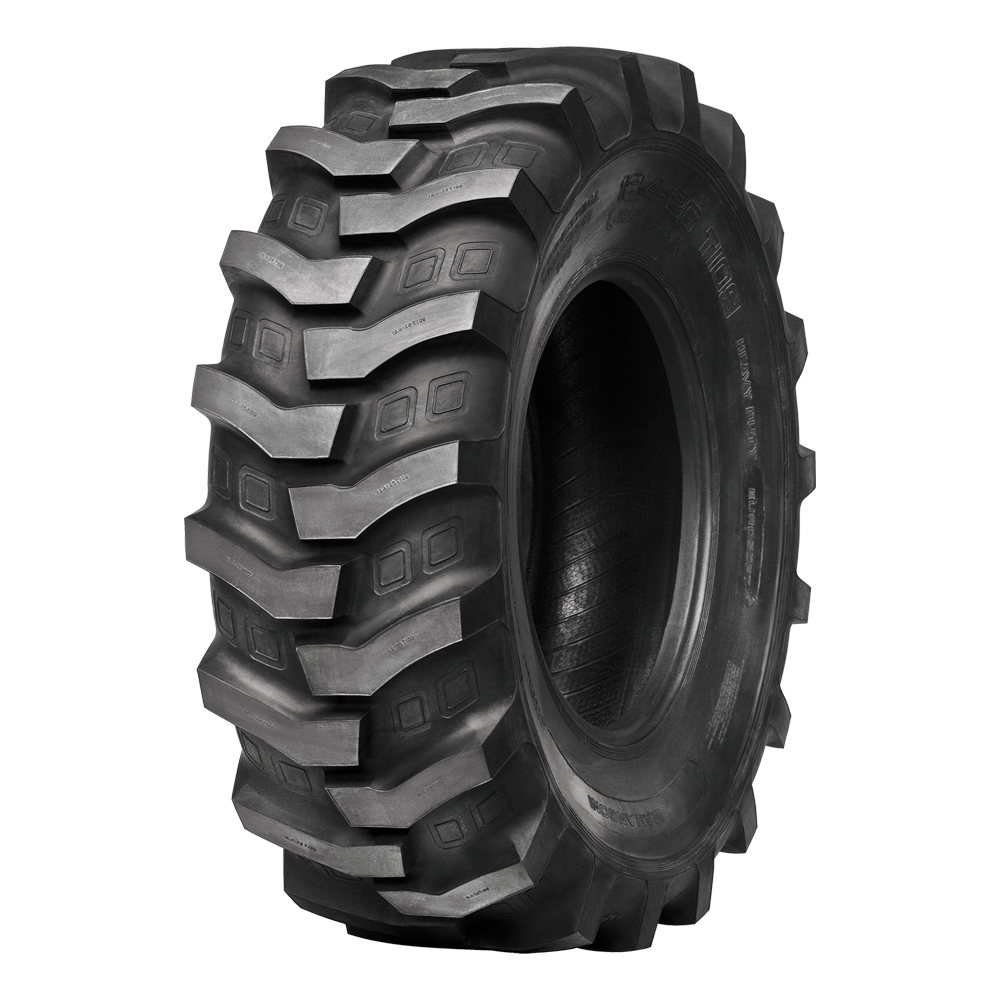

TI09
| CODE | TIRE SIZE | PROFILE | PR | TYPE | RIM WIDTH | INFLATION PRESSURE ETRTO (bar) | OVERALL DIAMETER (mm) ± 2% | OVERALL SECTION WIDTH (mm) ± 2% | LOAD CAPACITY (kg) 40km/h |
WEIGHT(kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Kg | Pound | ||||||||||
| 15.5/80 – 24 | IM54 | 16 | TL | W12 | 4.00 | 1.260 | 415 | 4.680 | 70.50 | 155.10 | |
| 18.4 – 26 | TI09 | 12 | TL | 16.00 | 2.50 | 1.420 | 490 | 4.000 | 93.50 | 205.70 | |
| 16.9 – 28 | TI09 | 14 | TL | 15.00 | 3.00 | 1.415 | 460 | 3.860 | 83.50 | 183.70 | |
